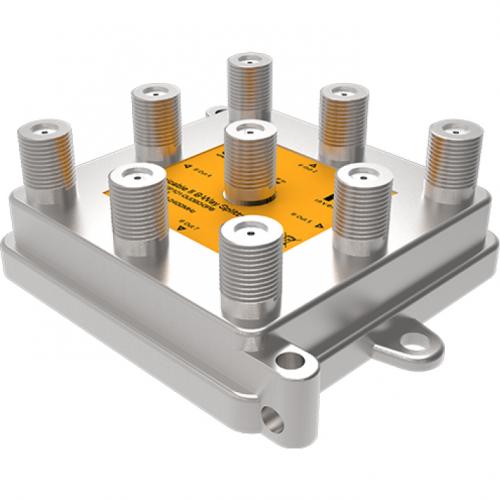

Сателитен сплитер Unicable™ Inverto - 8 изхода 5-2400 MHz
- SAT Сплитери
- Inverto
17.00 лв.
Добави:
Инфо:
| Technical specifications | |
|---|---|
| Frequency range | 5 MHz - 2400MHz |
| Inputs | 1x F-type, female |
| Output | 8x F-type, female |
| Insertion loss | 15.5 dB max. |
| Isolation between ports | 18 dB min. |
| Input return loss | -10 dB max. |
| Output return loss | -8 dB max. |
| DC & 22kHz pass from Output to Input | Yes |
| Steering diodes | Yes |
| Power consumption | 0.3 W |
| Operating temperature | -30° C ~ +60° C |
| Weight | 124.8 g |
| Dimensions (W x D x H) | 86.2 mm x 69 mm x 28.5 mm |
