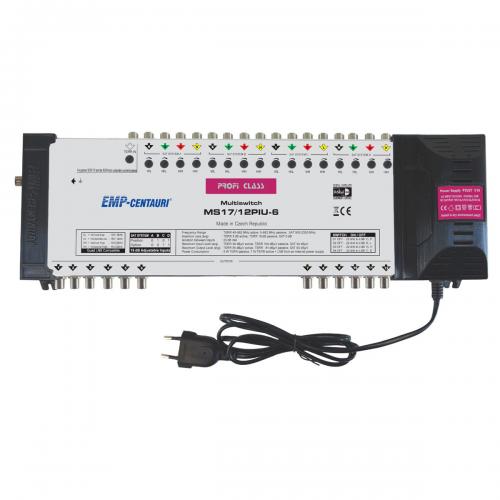

Мултиключ 13 към 12

За три спътника
EMP Centauri
Налични цветове:

281.21€ / 550.00лв

Добави: Добави в количка

Инфо:

Brief specification:

Parameter	Condition	Value
Frequency range	Sat. inputs	950-2300 MHz
	Terr. input	5-862 MHz (passive) 40-862 MHz (active)
	Outputs	5-2300 MHz (passive) 40-2300 MHz (active)
Control		DiSEqC 1.0 (2.0) commands
Insertion loss	Sat.	0 dB avg
	Terr. passive	19 dB avg
	Terr. active	5 dB avg
Sat. inputs isolation	Between V/H polarisations	20 dB min
	Between low/high bands	20 dB min
	Between sat. systems	25 dB min
Maximum input level*	Sat.	90 dBµV avg**
Maximum input level*	Terr.	100 dBµV avg (passive) 90 dBµV avg (active)
Maximum output level*	Sat.	90 dBµV avg
Maximum output level*	Terr.	81 dBµV avg (passive) 85 dBµV avg (active)
Power consumption	From each receiver	75 mA (18 V)
Power consumption	From internal power supply	4.5 W (passive) + LNB 6.5 W (active) + LNB
Terr. preamplifier supply		150 mA max (12 V DC)
Dimensions (w,d,h)		47.0 x 15.2 x 8.7 cm (power cord length 130 cm)
Temperature range		-30 ~ +70 °C

*Terr.: EN 50083-3/60dB IMA₃ [dBµV]; SAT: EN 50083-3/35dB IMA₃ [dBµV] **Max. input level increases when input attenuator is used. The given value is valid for no attenuation.
