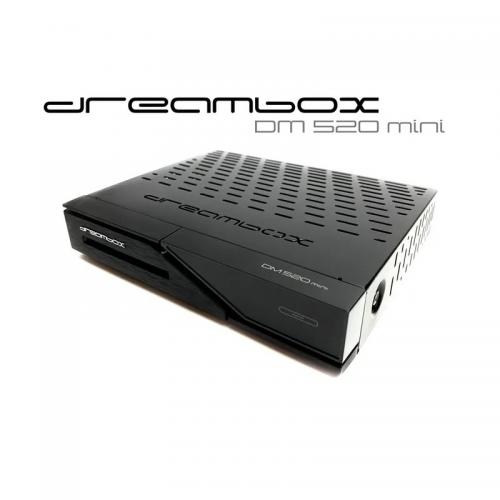

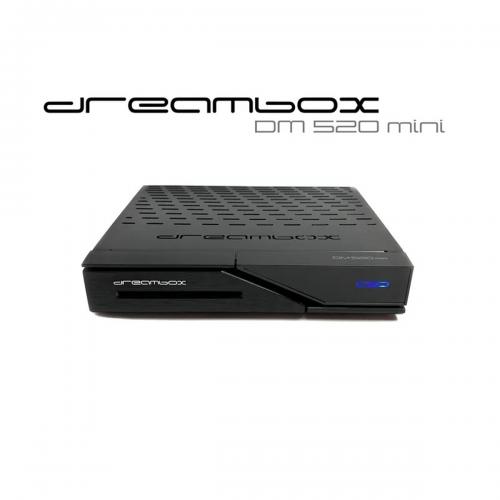

Dreambox DM520 mini HD is a compact HD satellite receiver designed for users who want reliable digital TV reception and the flexibility of the Linux Enigma2 platform. It features a DVB-S2 tuner, supports H.265/HEVC video decoding and offers network functions in a compact design.
The receiver is powered by a Broadcom BCM73625 processor delivering 2000 DMIPS, with 512 MB RAM and 512 MB Flash memory. Connectivity includes HDMI 1.4a, LAN Ethernet, a USB interface and a smart card reader. Dreambox OS and Enigma2 provide access to compatible software extensions and multimedia features.
Key Features
- Compact HD satellite receiver
- 1 × DVB-S2 satellite tuner
- Linux operating system with Dreambox OS / Enigma2
- Broadcom BCM73625 processor, 2000 DMIPS
- H.265/HEVC, H.264/AVC and MPEG-2 support
- Full HD video decoding
- 512 MB RAM and 512 MB Flash memory
- HDMI 1.4a digital audio and video output
- USB 2.0 port and separate service USB interface
- 10/100 Mbps LAN Ethernet
- Built-in smart card reader
- Optical S/PDIF digital audio output
- DiSEqC 1.0, 1.1, 1.2 and USALS support
- Unicable system compatibility
- Electronic Programme Guide (EPG)
- Web interface for control via computer or smartphone
- Optional Wi-Fi connectivity using a compatible USB adapter
Technical Specifications
| Brand | Dreambox |
| Model | DM520 mini HD |
| Receiver type | HD digital satellite receiver |
| Tuner | 1 × DVB-S2 |
| Operating system | Dreambox OS / Linux Enigma2 |
| Processor | Broadcom BCM73625, 2000 DMIPS |
| RAM | 512 MB |
| Flash memory | 512 MB |
| Video decoding | MPEG-2, H.264/AVC, H.265/HEVC |
| Maximum resolution | Full HD up to 1920 × 1080 |
| HDMI | HDMI 1.4a |
| USB interface | 1 × USB 2.0 |
| Service interface | USB Service |
| Network connection | Ethernet RJ-45, 10/100 Mbps |
| Digital audio output | S/PDIF |
| Card reader | 1 × smart card reader |
| Antenna control | DiSEqC 1.0, 1.1, 1.2, USALS |
| Wireless connectivity | Via an optional compatible USB Wi-Fi adapter |
| Power supply | 12 V DC / 2 A |
| Dimensions (W × D × H) | Approximately 148 × 118 × 31 mm |
Functions and Features
- Linux Enigma2: a flexible software platform with customisation options and support for compatible extensions.
- H.265/HEVC: efficient video decoding up to Full HD resolution.
- Network management: access the web interface through the local network.
- EPG: view programme information provided by the broadcaster.
- Automatic channel scanning: search for satellite TV and radio channels.
- Multimedia features: playback and network functions depending on the installed software.
- PVR Ready: recording is possible with compatible external USB storage and suitable software.
- Unicable: compatibility with satellite systems using this technology.

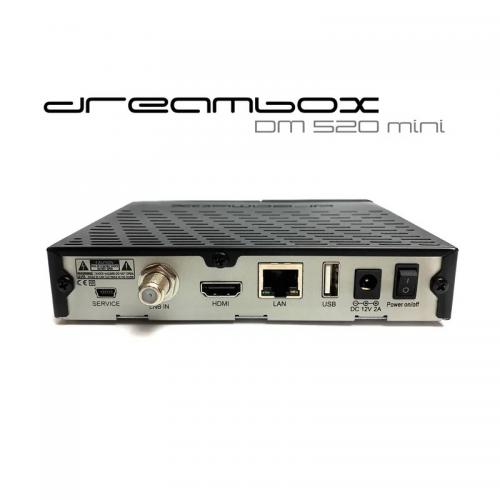

Interfaces and Connectivity
- LNB IN: satellite dish input.
- HDMI: digital connection to a TV or monitor.
- USB 2.0: connection for compatible external devices.
- USB Service: service interface for software maintenance and recovery.
- LAN Ethernet: wired connection to a router or local network.
- S/PDIF: digital audio output for compatible audio equipment.
Suitable For
- DVB-S/S2 satellite television systems.
- Users who prefer Linux and Enigma2 receivers.
- Compact installations where space is limited.
- Systems requiring HDMI and network connectivity.
- Users who want software flexibility and network-based control.

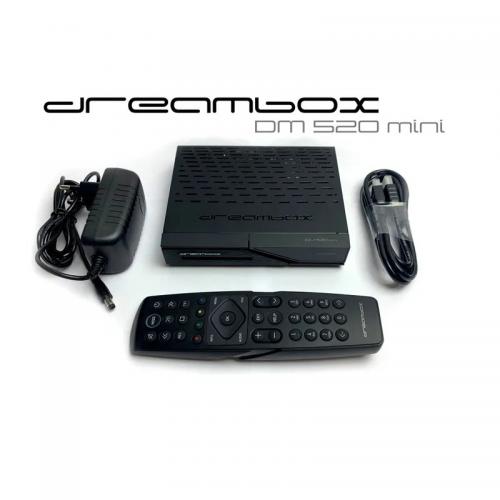

Package Contents
- Dreambox DM520 mini HD receiver with DVB-S2 tuner

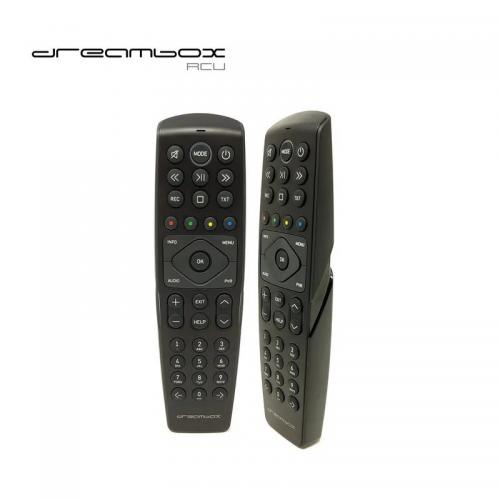

- RC20 remote control
- Power adapter
- Quick-start guide
Important Information
The Dreambox DM520 mini HD is a satellite receiver with one DVB-S2 tuner. It is not a Combo model and does not include a built-in DVB-T2 or DVB-C tuner. Wi-Fi is not built in and requires an additional compatible USB adapter. Recording depends on the compatible USB storage device and installed software. Access to encrypted channels depends on the compatible card, conditional-access system and television provider's subscription terms.
- Made in Germany
- Warranty: 24 months
