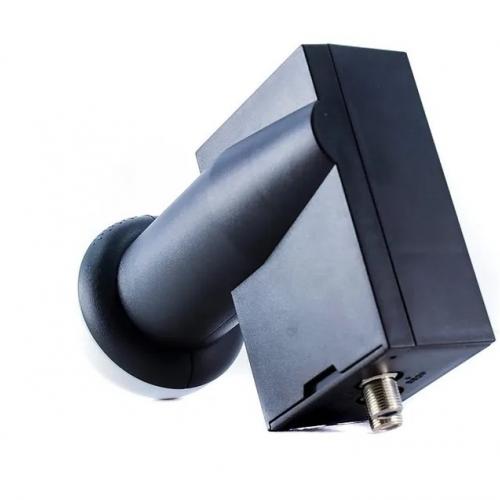

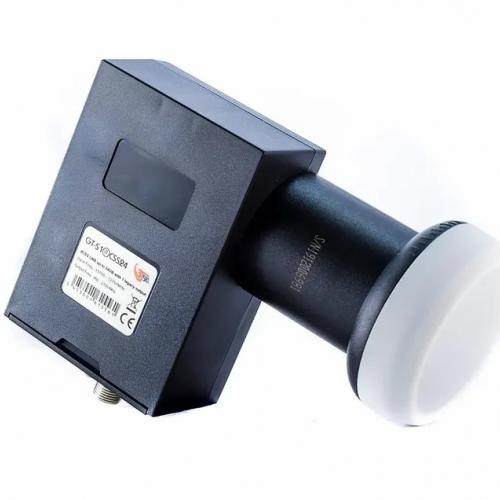

GT-SAT Unicable LNB GT-S1dCSS24 24UB with 1 Legacy Output for up to 25 Subscribers - 4K/UHD

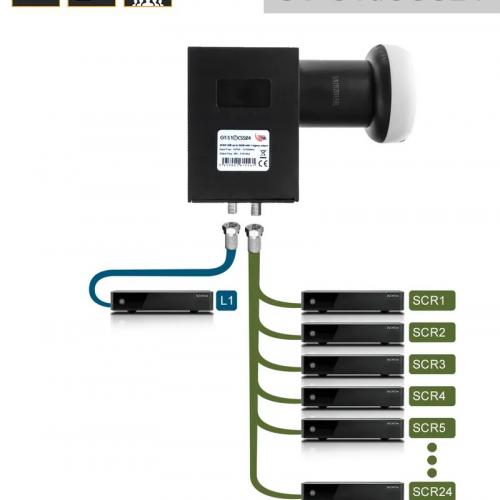

This professional single-cable LNB from GT-Sat (GT-S1dCSS24) can directly supply up to 25 receivers (24 SCR-compatible receivers and 1 conventional satellite receiver).
The GT-S1dCSS24 LNB allows you to connect up to 24 subscribers with a single coaxial cable. The receivers must support either the EN50607 transmission protocol or the dHello protocol.
The first 8 channels (user bands) can be used by receivers that only support the EN50494 protocol.
The GT-S1dCSS24 LNB also supports the EN50494+ function, which allows you to expand the setup to up to 16 receivers that only operate according to EN50494.
Additionally, the legacy output allows for the connection of a conventional receiver.
With the optionally available GT-dC2 dController, the LNB can be programmed according to your preferences.
Product Features:
Model: GT-S1dCSS24
- SCR (Satellite Channel Router) / Single-Cable LNB
- 1x SCR output for up to 24 receivers on one coaxial cable (must be SAT-SCR compatible)
- 1x Legacy output for a standard satellite receiver
- Noise Figure: 0.1 dB (typ.)
- Gain Legacy port: 57 - 61 dB
- Gain SAT-SCR port: 42 - 62 dB
- Gain Flatness (SCR port): +/- 0.2 dB / 26 MHz over temperature
- Gain Flatness (Legacy port): +/- 0.5 dB / 26 MHz over temperature
- Gain Variation (SCR port): 1 dB over temperature
- Gain Variation (legacy port): 4dB over temp.
- Cross-pole isolation >25dB over temp.
- Legacy control: DiSEqC 1.0
- Communication SCR port: DiSEqC 2.0
- Image Rejection: >40dB over temp.
- Temperature range: -30°C to +65°C
- Power supply voltage: 10V - 20V
- Power consumption legacy port: 90mA
- Power consumption SCR port: 300mA
- Feed diameter: Ø 40mm
- Feed length: 42mm
- 4K/UHD, HDTV & DVB-S2 compatible
- Extendable weather protection
SCR frequencies:
CH01: 975 MHz
CH02: 1025 MHz
CH03: 1075 MHz
CH04: 1125 MHz
CH05: 1175 MHz
CH06: 1225 MHz
CH07: 1275 MHz
CH08: 1325 MHz
CH09: 1375 MHz
CH10: 1425 MHz
CH11: 1475 MHz
CH12: 1525MHZ
CH13: 1575MHZ
CH14: 1625MHZ
CH15: 1675MHZ
CH16: 1725MHZ
Ch17: 1775 MHZ
CH18: 1825MHZ
CH19: 1875MHZ
CH20: 1925 MHZ
CH21: 1975 MHZ
CH22: 2025MHZ
CH23: 2075MHZ
CH24: 2125MHZ
- Made in Luxenburg
- Warranty - 24 months
